Restore your Mercedes-Benz factory front camera image, 360° top-down view and front bumper clearance feed with a direct OEM-replacement camera for part number A0009053804.

⚠️ IMPORTANT – PART NUMBER CHECK REQUIRED
Before ordering, please remove the Mercedes star at the front grille and check the printed OEM number on the camera housing. This listing fits vehicles originally fitted with A0009053804 (also printed as 0009053804 or 000 905 38 04), or the superseded A6420106467, only. Pre-facelift cameras such as A0009053902, and other surround-view part numbers (A0009051103, A0009051503, A0009050806), are NOT covered, even if the housing looks similar.

Connector Type
Mercedes-Benz OEM front camera connector — plugs directly into the factory W212 / S212 / W218 harness behind the Mercedes star. No cutting, splicing or adapter required.

High-Quality Imaging
Wide-angle lens calibrated to match the original Mercedes field of view, producing a sharp, true-to-colour image with strong low-light performance and minimal distortion at the screen edges so the 360° composite stitches correctly.

OEM-Grade Build
Sealed housing with factory-style gasket, UV-stable plastics and corrosion-resistant fixings. Designed to withstand UK weather, road spray and automatic car washes.

Compatible Part Numbers
A0009053804, 0009053804, A 000 905 38 04, 000 905 38 04, A6420106467, 6420106467

Vehicle Compatibility (GUIDE ONLY — always verify by part number)

• Mercedes-Benz E-Class W212 sedan (facelift) 2014.5–2016 — incl. E200, E250, E300, E350, E400, E550
• Mercedes-Benz E-Class S212 estate (facelift) 2014.5–2016 — incl. E200T, E250T, E300T, E350T
• Mercedes-AMG E63 / E63 S 4MATIC W212 sedan (facelift) where fitted with 360° surround-view option
• Mercedes-AMG E63 / E63 S 4MATIC S212 estate (facelift) where fitted with 360° surround-view option
• Mercedes-Benz CLS W218 / C218 coupe (facelift) 2015–2017
• Mercedes-Benz CLS Shooting Brake X218 (facelift) 2015–2017

Common Symptoms Resolved
Blank front camera view, missing 360° / top-down composite, snowy or rolling image, distorted colours, fogged or cracked lens (common — front cameras sit exposed in the bumper), water ingress, intermittent dropout in cold or wet weather, “Front Camera Unavailable” warning in COMAND.

Coding / Configuration Notice
This camera is a like-for-like replacement and does not normally require coding. If your vehicle has previously been retrofitted with a different camera variant, or if the front camera option was added after manufacture, SCN / Xentry coding may be needed to enable the feed in COMAND.

What’s Included

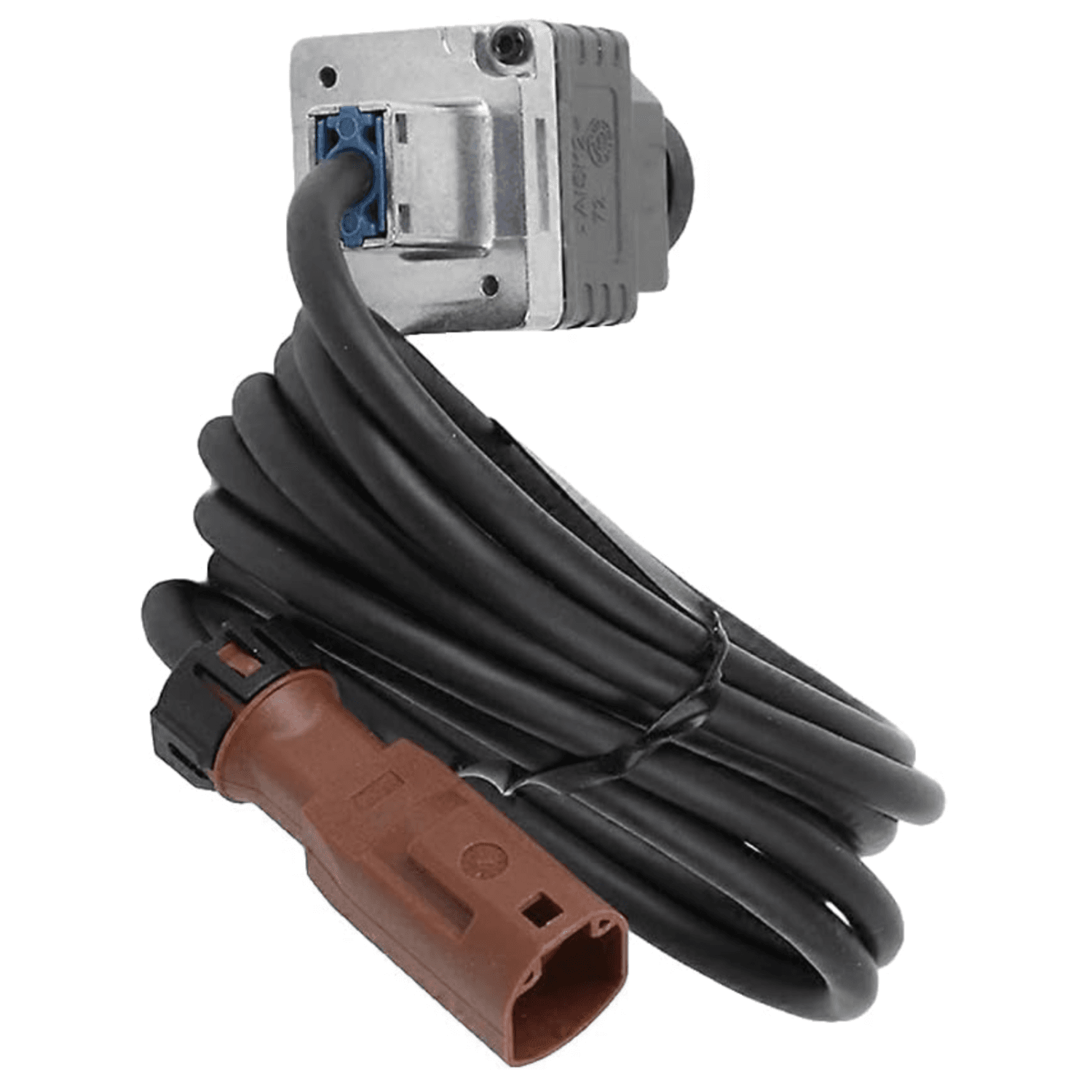

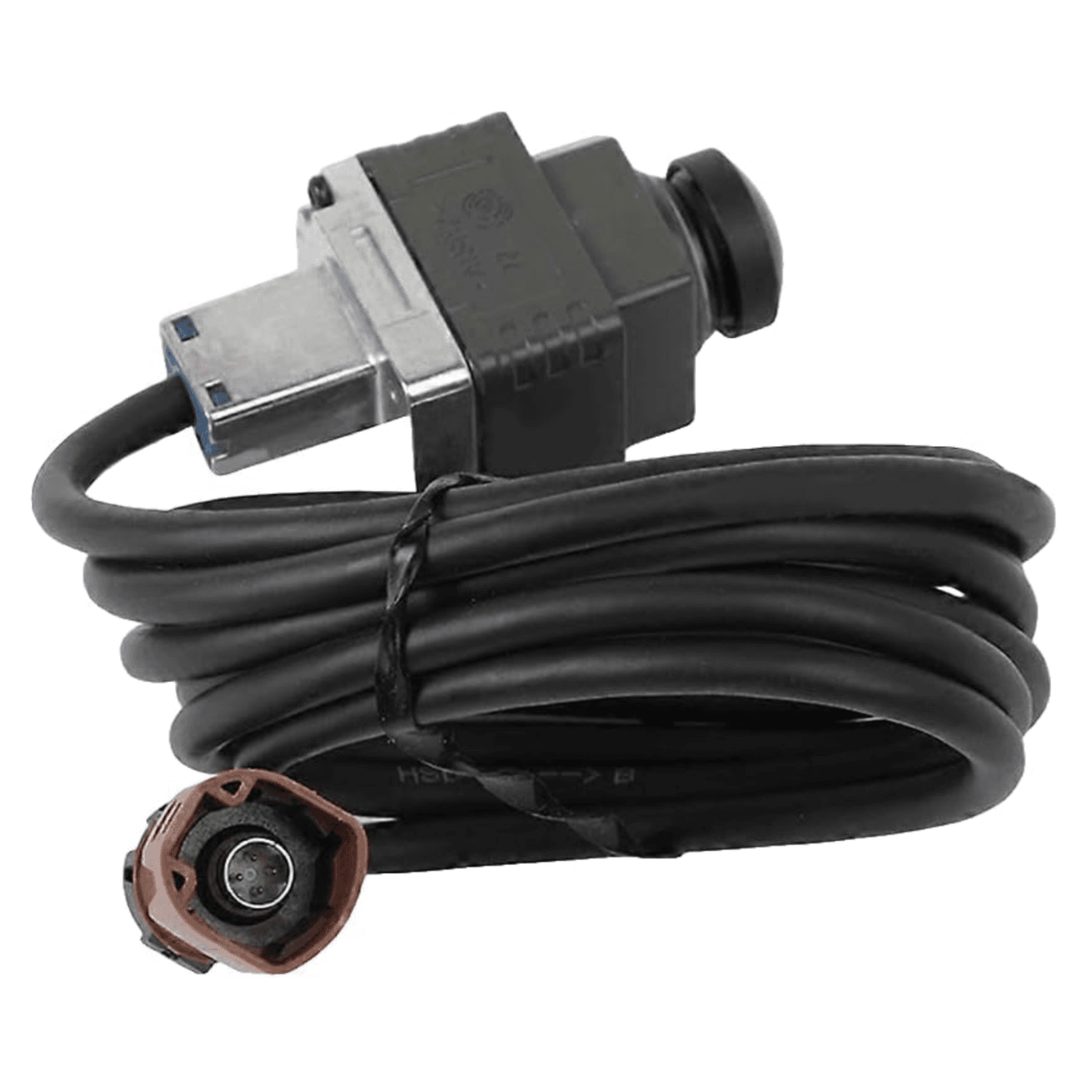

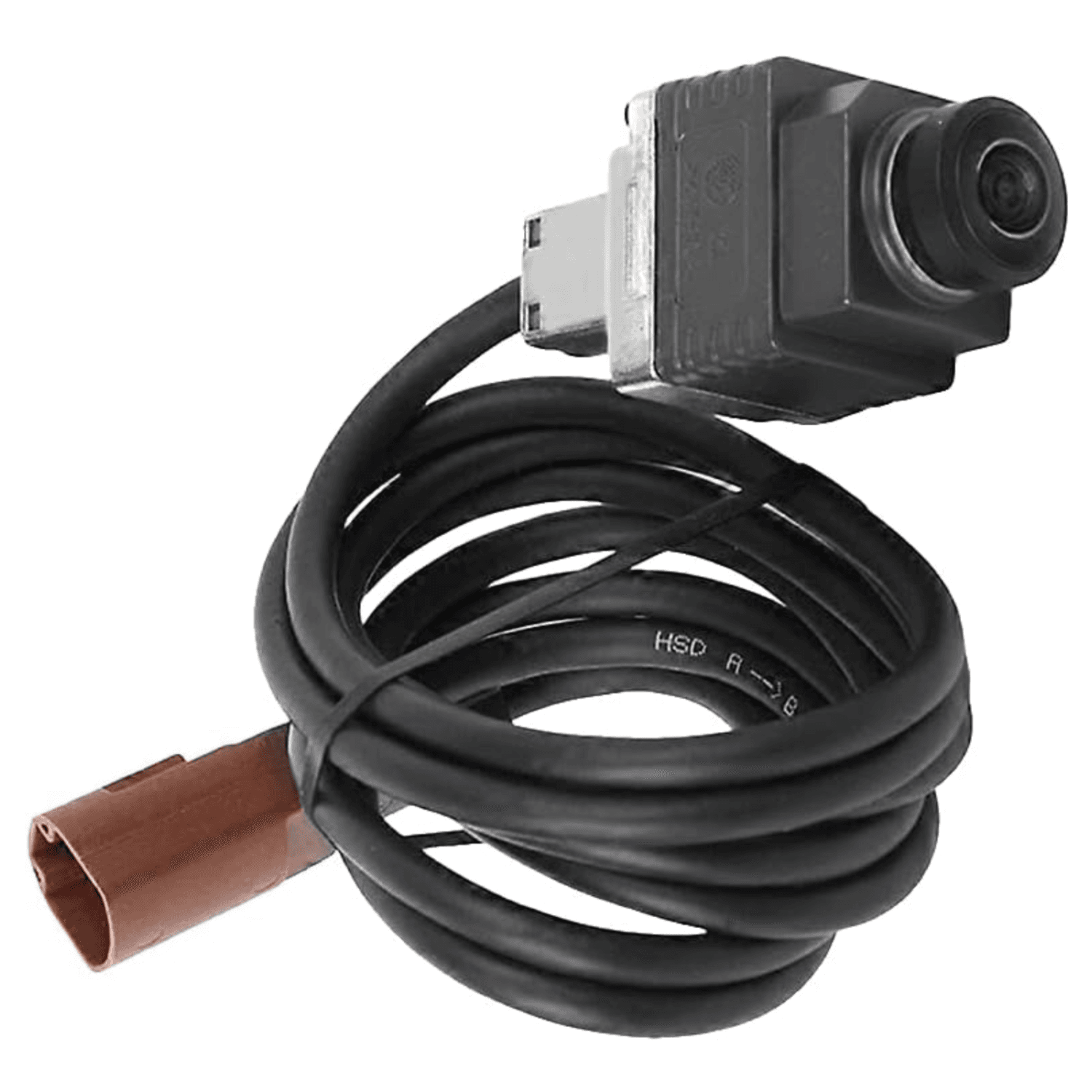

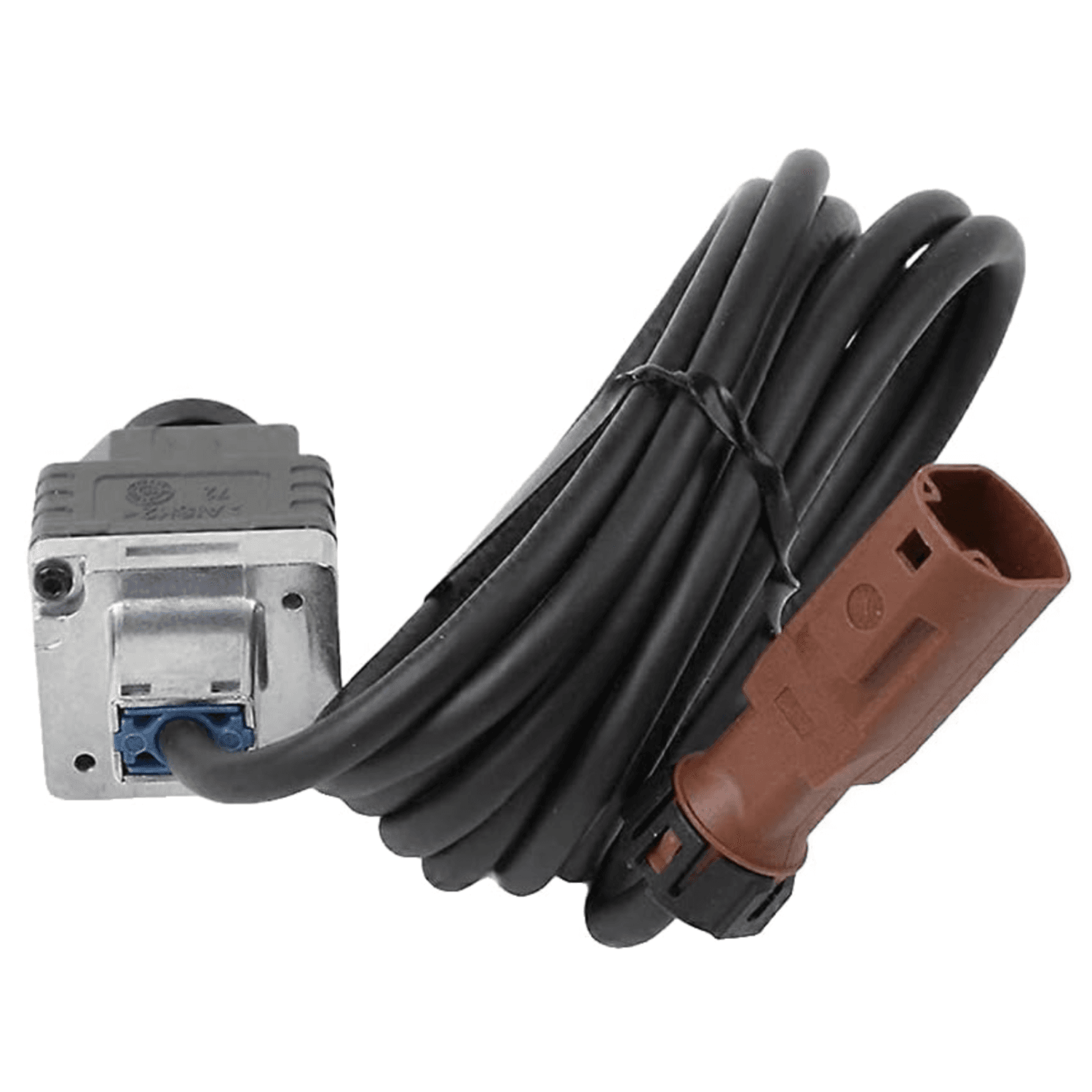

1 x Front surround-view parking camera assembly (A0009053804 specification, replacing A6420106467 where superseded). The Mercedes star badge, retaining clips and bumper trim are NOT included — reuse your original hardware.

Additional Details
Bench-tested for image output and connector continuity before packing. Packed in protective foam to prevent transit damage to the lens face.

Returns & Product Integrity Policy
Every camera leaves us with a tamper-evident warranty seal and matched serial record. Returns are accepted on unfitted parts in original condition with the seal intact. Units returned with a broken, missing or altered seal, or showing signs of installation, water damage, impact damage or substitution of a non-matching part, will not be eligible for refund or replacement under our 12-month warranty.

About this item

• Direct OEM replacement for the front / 360° surround-view (“Rundumsichtsystem”) parking camera fitted to the Mercedes-Benz E-Class W212 sedan, S212 estate and W218/C218 CLS (facelift, MY2014.5–2017) — restores the front camera feed, top-down 360° composite and bumper-clearance view.
• Replaces Mercedes OEM part numbers A0009053804 / 0009053804 and superseded A6420106467 — verify the printed number on your old camera body before ordering. This listing does NOT cover pre-facelift A0009053902 cameras or other surround-view variants (e.g. A0009051103, A0009051503, A0009050806).
• Plug-and-play Mercedes factory connector — fits the original front bumper / Mercedes-star camera harness; no splicing, soldering or adapters required.
• OEM-grade wide-angle optics and weather seal — calibrated field of view to match the factory 360° stitching, clear low-light image, sealed housing resistant to rain, road spray and car-wash pressure.
• Tested before packing — every camera is bench-tested for image output and connector continuity.
• Tamper-evident warranty seal applied — covered under our 12-month LMAutoParts warranty when the seal is intact.
